Math Effects

	Linear	This node interpolates linearly between a start and target value.
	Decay	This node interpolates linearly between a start and target value. In contrast to Linear the gradients for increase and decrease can be set individually.
	Damper	This node interpolates between a start and target value with ease-in and ease-out.
	Oscillator	This node oscillates around a target value, beginning at a start value.
	Ease	This node interpolates between a start and target by using common easing functions.
	Ease Morph	This node blends a Begin and Target value according to a specified easing function based on the Morph value.
	Clipping	This node clips and maps a range of values to another value range.
	Delay	This node transfers values from input to output with a customizable delay.

All Math Effect Nodes take a numeric input value that is manipulated over time and transform it into an output value. They are often used to enhance the appearance of simple animations done with e.g. Mover Nodes.

Note that Linear, Decay, Damper and Oscilator nodes are value-generators! They automatically generate output values if the Target property changes. So it does not make sense to change the Target value every frame.

Linear

Interpolates linearly between the current value of the Value output property and the value of the Target input property. The interpolation is automatically started when the Target value changes and finishes after the amount of seconds specified in Duration. Once the interpolation is completed, the Reached event is fired.

By checking the !UseTarget2 property, the interpolation will use the value of Target2 instead of Target as the interpolation goal.

Decay

The Decay Node is similar to the Linear Node in that it performs a linear interpolation between the current output value and the target value. It extends the Linear Node by the Attack (start value is lower than target value) and Decay (start value is higher than target value) properties which specify the rate of interpolation instead of a fixed Duration. The duration of the interpolation arises from the Attack/Decay value and the difference between the start and target value.

Damper

The Damper node is similar to the Linear Node in that it performs an interpolation between the current output value and the target value. However, it interpolates between the start and target value by one of two non-linear functions. Function_1 corresponds to a cosine where Function_2 corresponds to a hyperbolic tangent type of interpolation.

Oscillator

The Oscillator node is similar to the Linear Node in that it performs an interpolation between the current output value and the target value. It uses a spring-mass type equation to guide the interpolation. The interpolated value will close in on the target value, overshoot it, reverse velocity, overshoot it, while at the same time slowing down until the target is reached.

Ease

The Ease node is similar to the other interpolation nodes in that it performs an interpolation by the well known easing functions like Back, Bounce, Elastic, etc. The Function and Mode properties select the easing mode and interpolation type. Some easing functions require additional parameters. If such a function is selected the required parameters show up in the Property Editor while others are hidden.

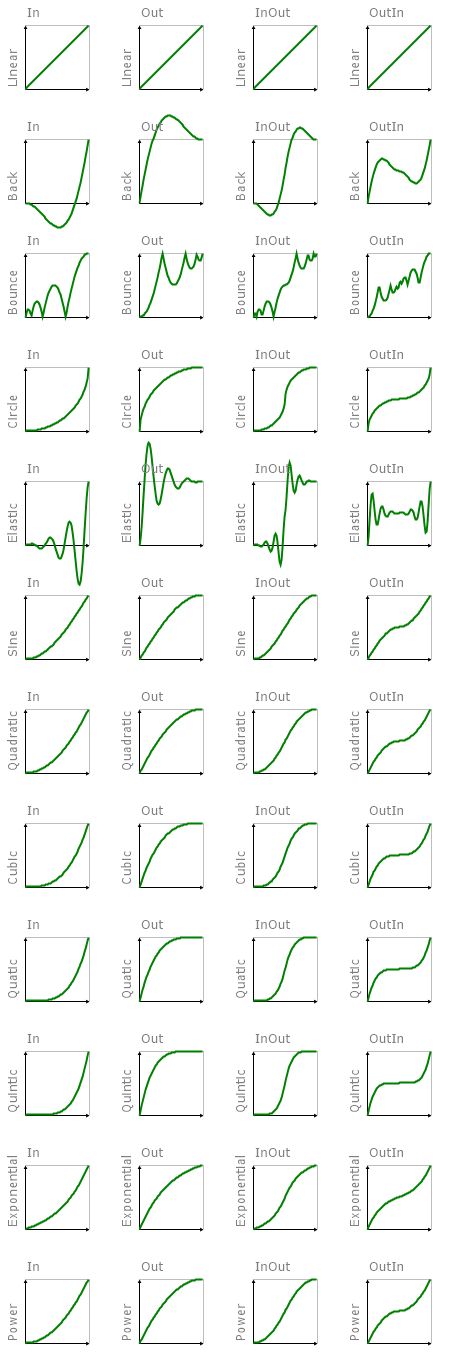

Overview of all supported easing functions:

Linear: Linear interpolation. (like the Linear Node)
Back: Retracts the motion slightly.
Bounce: Creates a bouncing effect.
- Bounces: Number of bounces. Default is 3.
- Bounciness: Specifies how bouncy the bounce motion is. Default is 2.
Circle: Creates a motion that accelerates and/or decelerates using a circular function.
Elastic: Creates a motion that resembles a spring oscillating back and forth until it comes to rest. (like the Oscillator Node)
- Oscillations: Number of times the target slides back and forth over the target. Default is 3.
- Springiness: Number that specifies the stiffness of the spring. Default is 3.
Sine: Creates a motion that accelerates and/or decelerates using a sine formula.
Quadratic: Creates a motion that accelerates and/or decelerates using the formula f(t) = t^2.
Cubic: Creates a motion that accelerates and/or decelerates using the formula f(t) = t^3.
Quartic: Creates a motion that accelerates and/or decelerates using the formula f(t) = t^4.
Quintic: Creates a motion that accelerates and/or decelerates using the formula f(t) = t^5.
Exponential: Creates a motion that accelerates and/or decelerates using an exponential formula.
- Exponent: Exponent used to determine the interpolation. Default is 2.
Power: Creates a motion that accelerates and/or decelerates using the formula f(t) = t^p.
- Power: Power value p. Default is 2.

Ease Morph

The Ease Morph node blends Begin and Target based on the Morph value by the well known easing functions like Back, Bounce, Elastic, etc. The Function and Mode properties select the easing mode and interpolation type. Some easing functions require additional parameters. If such a function is selected the required parameters show up in the Property Editor while others are hidden.
The supported easing functions are identical to the ones of the Ease Node.

Delay

The Delay Node stores input values and provides them as output values with a certain delay. The amount of delay is defined in number of frames between receiving a new input value and the time it gets set as output value.

Clipping

The Clipping Node maps a range of input values to a range of output values. For example the value range [0, 1] can be mapped to the value range [-2, 2]. The range for the input values is defined by the Properties MinIn and MaxIn. MinIn defines the lower limit and MaxIn the upper limit of the range. Input values that lie outside the range are assigned to the nearest range limit.

The range for the output values is defined by the Properties MinOut and MaxOut. MinOut defines the lower limit and MaxOut the upper limit of the range.
