Designer Options

The Ventuz Designer allows some user-dependent configurations that are described above. Look for the eye symbol inside the certain editors to find the options menu.

Help

Under Help you can enable/disable the Dynamic Help, check the latest Release Notes or enable/disable the Automatic update check for Ventuz via internet.

Scene

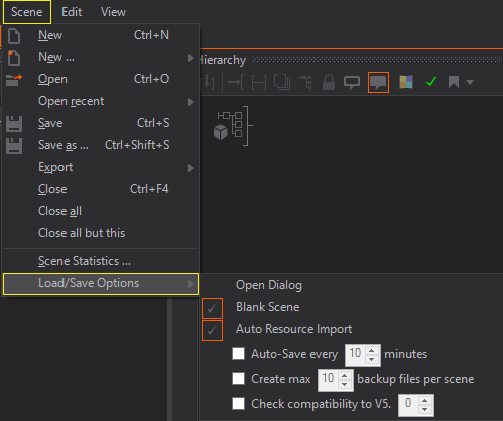

Load & Save Options

• Open Dialog
  Enables/Disables the automatic display of the Open Scene dialog after opening a Project.
• Blank Scene
  Opens a new empty Ventuz Scene every time a Ventuz Project is opened.
• Auto Resource Import
  Enables/Disables the automatic import of external resources to the Project folders without a user dialogue.
• AutoSave every XX minutes
  Enables/Disables Auto-Save mechanism to periodically save all open scenes in auto-save files. For more details see Scene Backup and Versioning.
• Create max. XX backup files per scene
  Enables/Disables the generation of backup files for old scene versions on a Save Scene operation. For more details see Scene Backup and Versioning.
• Check compatibility to V5.{{XX}}
  Enables/Disables the check whether a saved scene is no longer compatible to an older version of Ventuz 5. If the Presenter/Runtime still runs on an older version, this option helps to keep scenes compatible. For more details see Deployment.

View

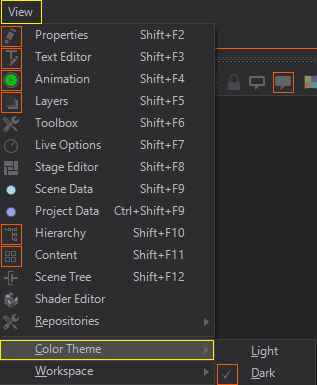

Color Theme

• Color Theme
  Switches between the default grey user interface theme and a darker version. This can be done during runtime but will take a couple of seconds at the first time.

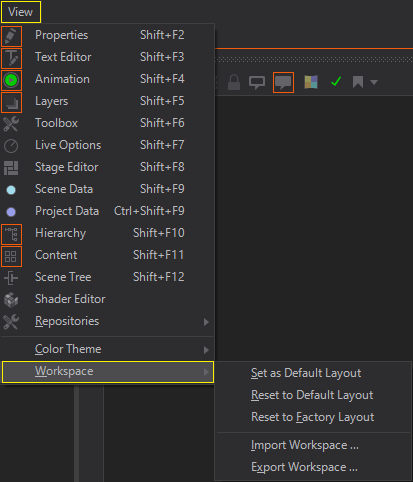

Workspace

Ventuz allows you to set your own preferred workspace. Workspaces can be easily saved and loaded. Moreover, you can import and export your preferred workspace in case you need to.

• Set as Default Layout
  Sets the current Layout as default.
• Reset to Default Layout
  Resets the active Layout to the last saved default.
• Reset to Factory Layout
  Resets the Workspace to the Designer Factory Default.
• Import Workspace
  Allows the import of a Ventuz Designer Workspace file .vws.
• Export Workspace
  Allows to export a Designer Workspace to a .vws file.

Editors

Content Editor

• Allow small icons
  The Content Editor can display nodes in a small style to save edit space. Small Content nodes without names are also displayed without braces to make them even smaller. Users who prefer the nodes to be all the same size can disable this feature here.
• Snap to Grid
  Enables/Disables the alignment of Content nodes to a virtual grid. This makes it easier to create properly lined-up content logic.
• Automatic Content Family creation
  Enables/Disables the automatic creation of Content Editor Families for some Toolbox Wizards (e.g. the Texture Wizard).

Text Editor

• Font
  Specifies the font to use in the Text Editor window. This font is not related to any fonts used in the render output!
• IME Mode
  Specifies the IME mode (Input Method Editor) for text editors inside Ventuz Designer. Special languages like, Chinese require special IME settings depending on the used keyboards.
