The Shot Box

A Ventuz Director operator will often find himself in situations where reaction time is crucial. Something unexpected happens and all advance planning suddenly is worth nothing. Now the only important thing is how fast can one get a certain information on screen.

Application-wide

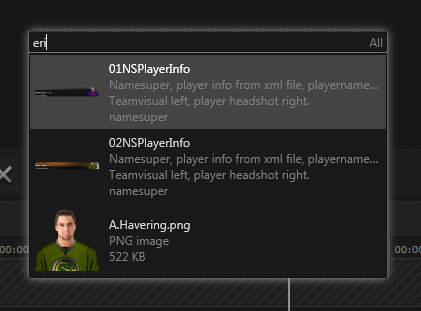

The answer to this is the Shot Box, a quick way to access all available templates, pages and assets. To open it, an operator can press + on the number pad regardless of what he is currently doing. A small text box will appear in the center of the application. Upon typing, the shotbox filters through the show's content and presents the first ten matches that contain the search string in their name. In the image below, the search string "eri" has been entered which yielded three matches:

• the 01NSPlayerInfo template
• the 02NSPlayerInfo template
• The headshot of a player called A.Havering

By using ▲, ▼, one can change the selection and by pressing Enter confirm it. Director will then replace whatever is currently cued and cue the selection instead. So within only a few key strokes, the content is ready to go.

Besides the name, templates and pages can be filtered by keywords, category and author. The following table shows the prefix to be used plus a respective example. There are multiple choices for each. They result in the same query.

Name	All items that contains the entered name are shown
no prefix	01NSPlayerInfo
name:	name:01NSPlayerInfo
Keyword	All items that have a keyword that matches the entered keyword are shown
$	$namesuper
kw:	kw:namesuper
key:	key:namesuper
keyword:	keyword:namesuper
Category	All items which category starts with the entered text are shown
#	#sports
cat:	cat:sports
category:	category:sports
Author	All items which author starts with the entered text are shown
@	@edward
author:	author:edward

Property Editor

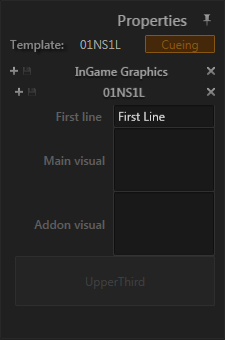

Another place where the shot box can be used is inside the Property Editor to fill in content. All places where an asset (such as an image) or a sub-template can be inserted are represented by slots (i.e. rectangular boxes).  clicking on such a slot opens up the shot box in filtered mode. The text on the right inside the shot box's text enter field will switch from "All" to the type of content than can be inserted into the slot (e.g. for a sub-template it will only list pages and templates). Otherwise, the behavior of the shot box is exactly the same.

Auto-Templates

A less obvious but tremendously powerful feature of the shot box is the use of auto-templates. The basic idea is simple: If one can already enter a search string inside the shot box, why not use parts of the entered text to pre-fill template data fields? This reduces the need to manually go to the property editor and makes getting content on the screen even faster.

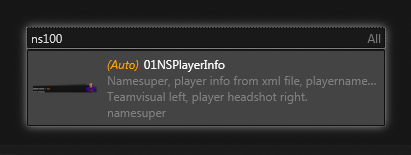

On a technical level, auto-templates are defined by ​Regular Expressions that are matched against the search string. If the regular expression matches, it is shown as another entry in the shot box, marked by the bright orange "(Auto)" label.

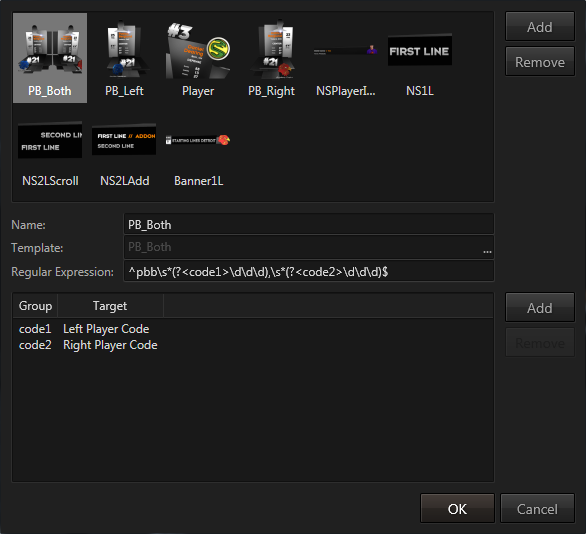

Auto-templates are stored in the Ventuz Project file and are shared among all shows based on a project. To see what auto-templates are available or to create new ones, go to the main menu Show / Project / Auto Templates... which will open the Auto Templates Editor. Let's take a closer look at the PB_Both auto-template that is currently selected in the following screenshot:

The top area of the Auto Templates Dialog shows the thumbnail of the template for which an auto-template is defined, here the PB_Both template. In the middle of the dialog is the regular expression text edit field. The bottom area of the dialog shows assignments of parts of the regular expression to data fields of the template itself.

To add a new template, simply press the add button in the top right corner and select a template, enter a regular expression and optionally connect parts of the regular expression by pressing the lower add button.

Regular Expressions

​Regular Expressions are a very powerful technique to match strings and can handle quite complex cases. However, that expressiveness can unfortunately also make it quite confusing to learn their syntax. The following is a short summary of the most important concepts:

A regular expression defines a pattern of characters that is searched for anywhere in the string the user entered into the shot box. The simplest regular expression is an exact string:

xyz

This would for example match the text This is an xyz test or xyzabc but not xy. The characters in the regular expression have to appear anywhere in the text in precisely that order.

Special Characters

There are however a number of characters that have a special meaning inside a regular expression. The following are the most important ones:

Character	Description	Example
.	Matches any single character.
*	Matches the preceding character any number of times.	a*b matches ab but also aaaab.
+	Matches the preceding character at least one time.	a+b matches ab and aaaab but not b
( and )	Group	Brackets define a group of characters within an expression. For example, a(bc)*d would match abcbcd but not abccd since the * operator will be applied to the group defined within the brackets.
|	Option	The pipe character is used to express an option. a(bc|de|xy)f would match either abcf or adef or axyf but not abcdef.
[, ]	Collection	Defines as collection of characters from which exactly one is matched. So a[bcdef]g would match acg but not ahg or abcg. Note that collections allow ranges to be specified (e.g. [a-z]). A collection can be inverted by the ^ character (e.g. [^\d] would match any non-digit character).
^	The start of the text.	^xyz would match xyzabc but not axyzbc.
$	The end of the text.	xyz$ would match abcxyz but not abxyzc.
\s	A whitespace character
\d	A digit	Matches 0-9, so \d-\d would match 2-9 but not 29 or 2-9.
\(, \), \[, \], \*, \+, \?, and more	Syntax characters	There are various characters that have a special meaning inside a regular expression. To match the literal character, such a character has to be escaped by a preceding backslash.
\\	A backslash	Since the backslash is used to escape other characters, matching an actual backslash in the text requires \\

Named Groups

As we have seen above, opening and closing brackets can be used to group a set of characters. Such a group can be assigned a name by using the

(?<nameofgroup>pattern)

syntax. Naming of groups is important as it allows us to connect parts of the match string with template data fields. So let's revisit the example from the screenshot above:

^pbb\s*(?<code1>\d\d\d),\s*(?<code2>\d\d\d)$

• The ^ and $ mean that this expression has to match the complete string that is entered into the shot box, from start to end.
• pbb: are just three characters, so whatever the user enters it has to start with pbb or the auto-template will not match.
• \s*: After the characters pbb there can be any amount of white-space characters, even zero.
• (?<code1>\d\d\d): This now is a group named code1. It matches exactly three digits.
• ,\s*: After the three numbers, a comma must follow plus - optionally - an arbitrary number of white-space characters.
• (?<code2>\d\d\d): A second named group matching exactly three digits.

So the regular expression would match

pbb 102, 304

but

pbb 1 3

would fail (no comma between the two numbers and the numbers don't have three digits each).

Examples

Pattern	Description
abc	Matches a string that contains the characters abc anywhere in the string.
^abc$	Matches only exactly the string abc.
^pbl\s*(?<code>\d\d\d)$	Matches a string that starts with pbl and is followed by a three digit number. Optionally the characters and the digits are separated by white-space characters. The value of the three digits is available as the named group code.
^ns\s*(?<text1>[^\d][\w\s]*)$	Matches a string that starts with ns and is then followed by a string that contains only letters, numbers and white-spaces and does not start with a digit.
